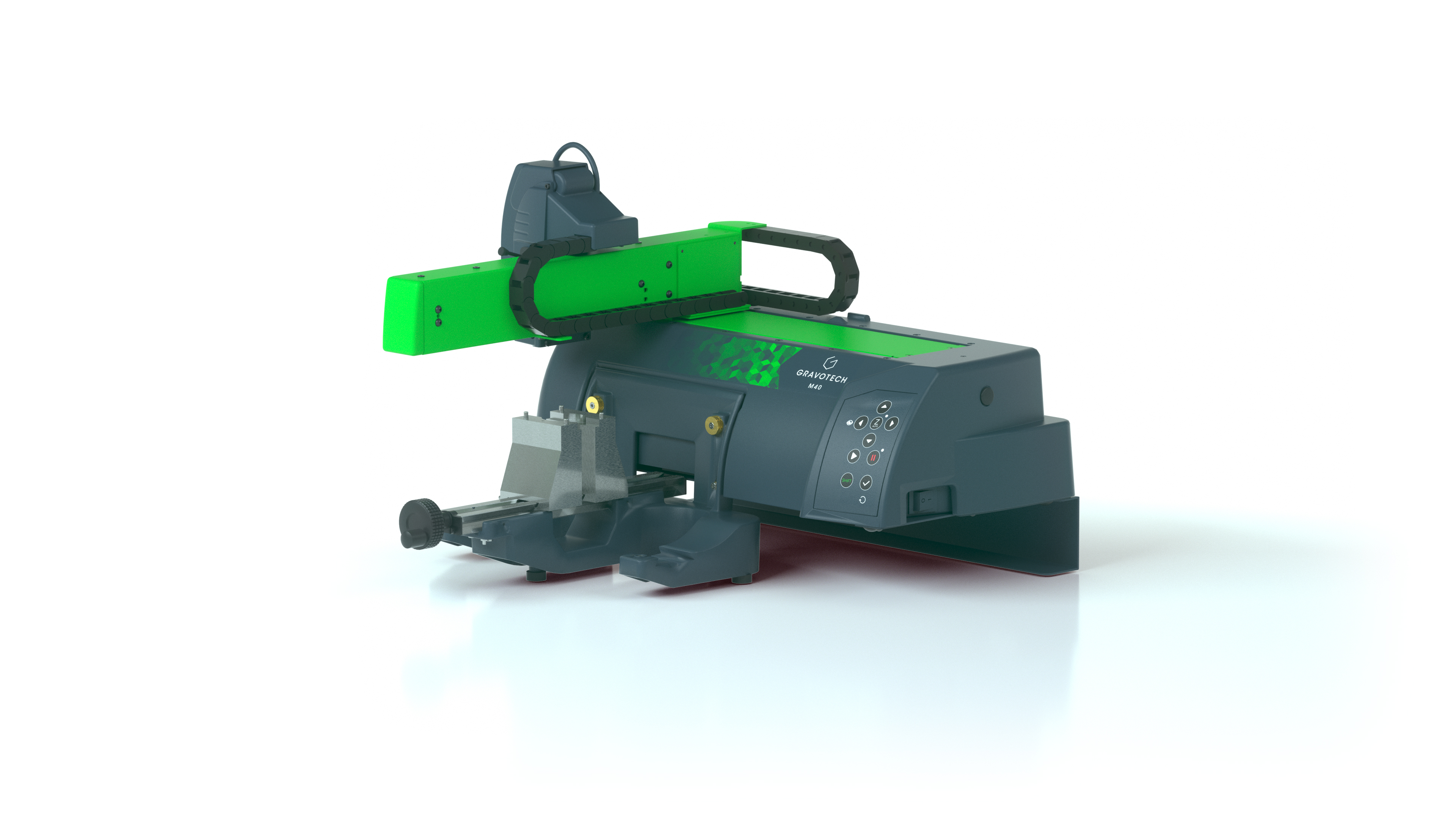

GRAVOTECH M40 ABC ROTARY ENGRAVING AND CUTTING MACHINE WITH 8″ X 12″ ENGRAVING AREA

Product Details

(Click to enlarge image) M40 ABC Rotary Engraving and Cutting Machine with 8″ x 12″ Engraving Area – NEW 8” x 12” Rotary M40 ABC Engraving Machine Engrave and Cut: Engravable Plastics (available from Gravotech), Precious Metals, Stainless Steel, Pewter, Brass, Aluminum, Wood, Glass, Leather, Paper, Fabric, Marble, Granite, Crystal, Ceramic, Backs of Mirrors, Acrylic, and much more. Works on standard 120 Electrical Current Engraving Area 8.2”D x 12”W x 4”H (210mm x 305mm x 102mm) Maximum Holding Capacity 9.2D” x Unlimited W x 3.5”H (234mm x Unlimited x 114mm) Maximum Object Weight: 42lbs (19kg) M40 Machine Dimensions 22”W x 20”D x 12.6”H (550mm x 510mm x 320mm) M40 Machine Weight: 40lbs (18kg) Optional Cylindrical Attachment Holding Capacity Diameter: Min: .125” (3mm) Max: 3.9” (120mm) X 17.7” (450mm) Length Maximum object weight 20lbs (kg) Suitable for a 1st time user with low volumes or the experienced user with mid – to high-volume requirements Excellent for Jewelry, Personalization, Signage, & Industrial production use. Versatile engraving from plastics to hard stainless steel. Direct Drive 20,000 rpm top loading 11/64” Spindle 51db-89db noise level Self-centering vice to hold large objects Easy to use, high-quality Cast Aluminum Chassis for the highest precision available in class & long life. Includes easy-to-use ABC Engraving software. CE Certification. Safe operations. No exposed moving parts. Engraving speeds up to 1.57 IPS Fast cutter up & down speeds up to 1.57 IPS Includes nameplate jigs, Watch Jigs, and a flat aluminum table with measurement increments for fast set-up. Red beam verification of target box or engraving path to confirm engraving location Virtually maintenance free Designed and manufactured by Gravotech, the world leader in engraving since 1938.
